Boom Pump Service
in Connecticut
and New York
Boom pump concrete pumping places ready mix at height and distance through a remote-controlled articulating arm — no crane, no wheelbarrow crews, no repositioning between pours. Hat City Concrete Pumping operates a fleet of 6 boom pump trucks out of Danbury CT and Brewster NY, with ACPA certified operators on every job.
Call (203) 790-7300 (CT) or (860) 467-1208 (NY) for a free estimate, or see our full concrete pumping services.
What Is a Boom Pump
and How Does It Work?

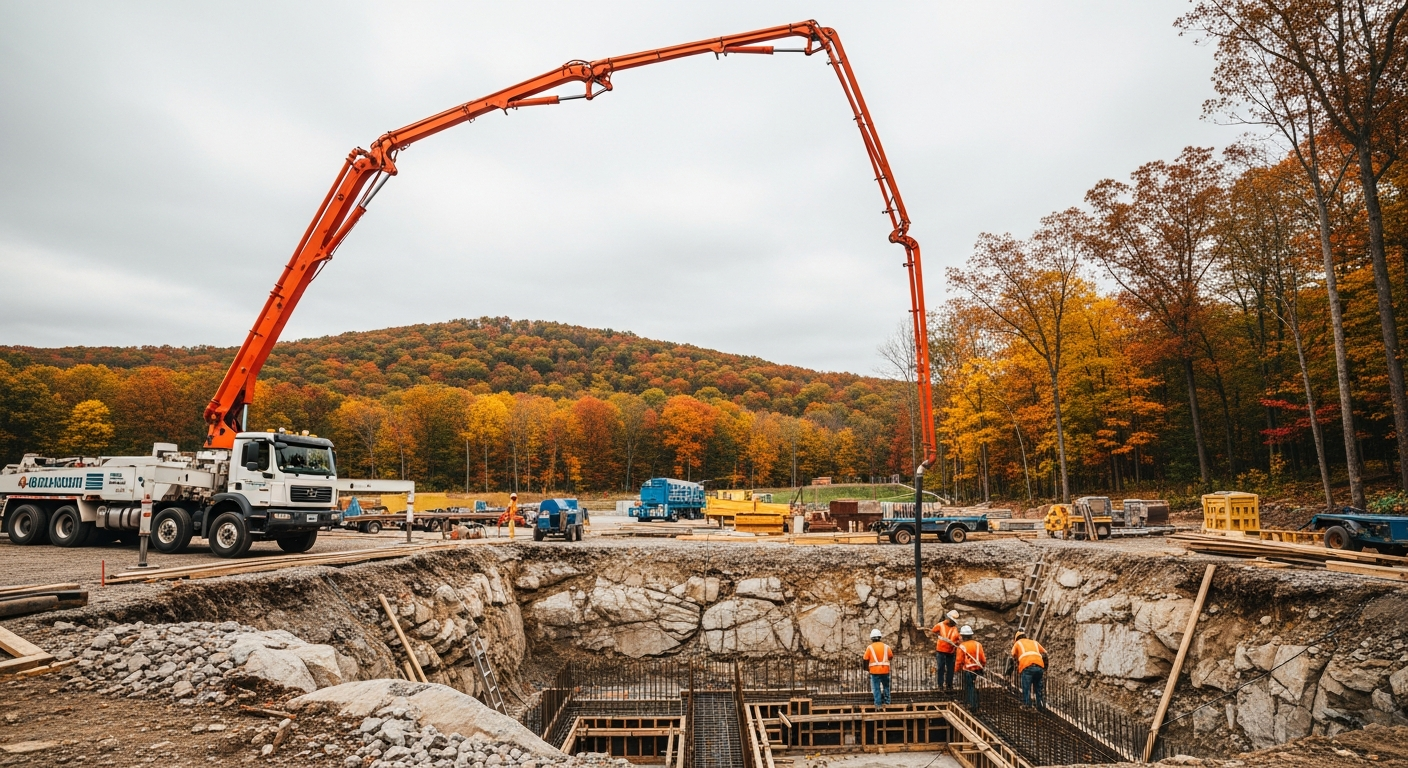

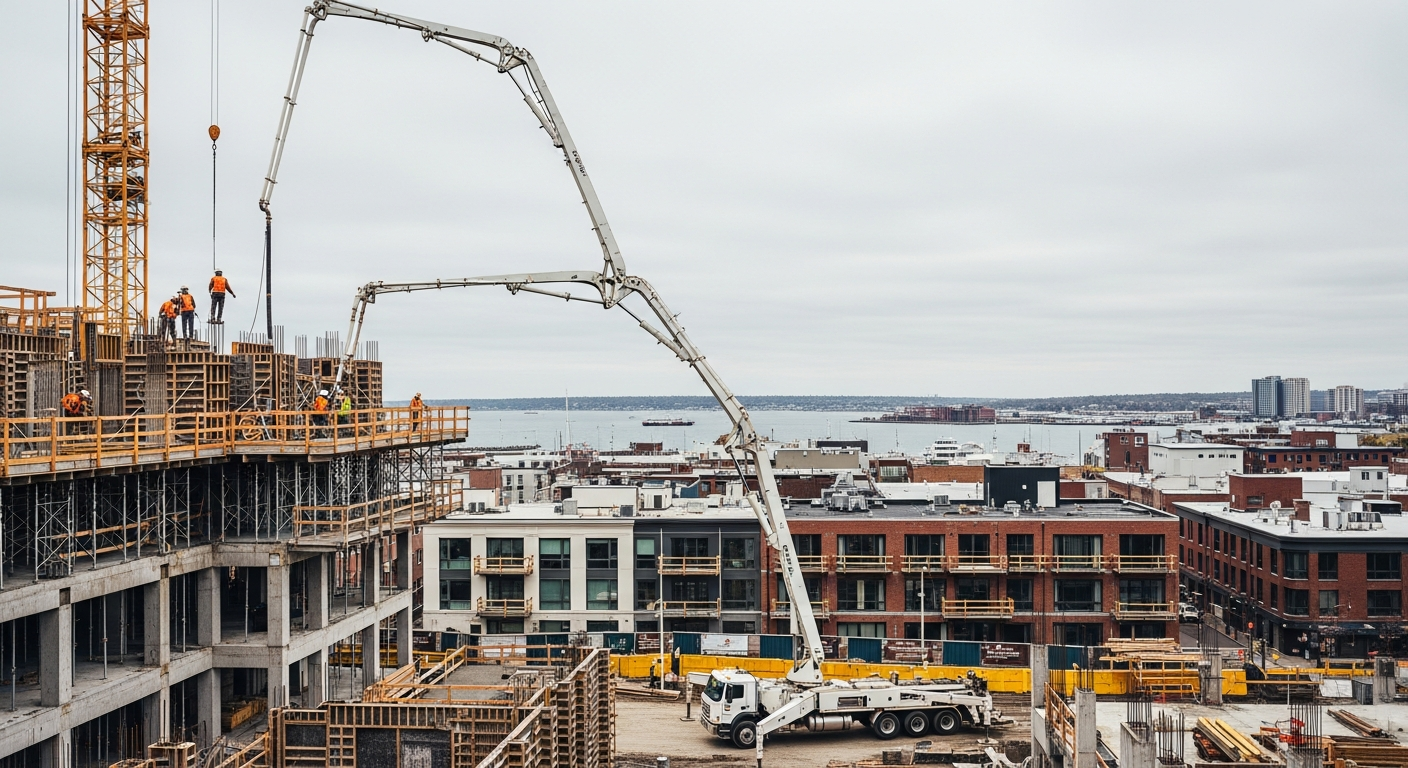

A boom pump is a truck-mounted concrete pump equipped with an articulating boom arm that unfolds to deliver concrete at height and distance. Also called a boom truck, it is one of the most versatile pieces of concrete placement equipment on any job site. The operator controls the entire placing boom from the ground using a remote unit — no crew needs to be at elevation during the pour.
Ready mix discharges into the hopper at the rear of the truck. Hydraulic pistons and an S-valve push the concrete through a pipeline running the length of the boom, exiting through the tip hose at the end. Placement rates exceed 100 cubic yards per hour — fast enough to stay ahead of multiple ready mix trucks and eliminate cold joints.
For a side-by-side comparison with line pumping, see our boom pump vs. line pump guide. Most clients who call get a straight answer based on their specific job conditions — reach, pour volume, and site access together determine which method fits.
What Boom Pump Trucks Are in the Hat City Fleet?
Hat City runs a fleet of 6 boom pump trucks: one 20-meter, four 40-meter units, and one 50-meter. That range puts the right truck on each job instead of oversizing the equipment for every pour.
20-Meter Boom Pump
The 20-meter boom pump is the truck for tight residential work — narrow driveways, backyard slabs with low overhead clearance, garage floors, and small foundations. It still pumps at full output; the smaller footprint is the advantage.
40-Meter Boom Pump
Four of six trucks are 40-meter boom pumps. Foundation pours, commercial slabs, grade beams, and multi-story concrete placement all fall within its range. Extended reach means fewer hose moves during a pour — faster placement, less disruption.
50-Meter Boom Pump

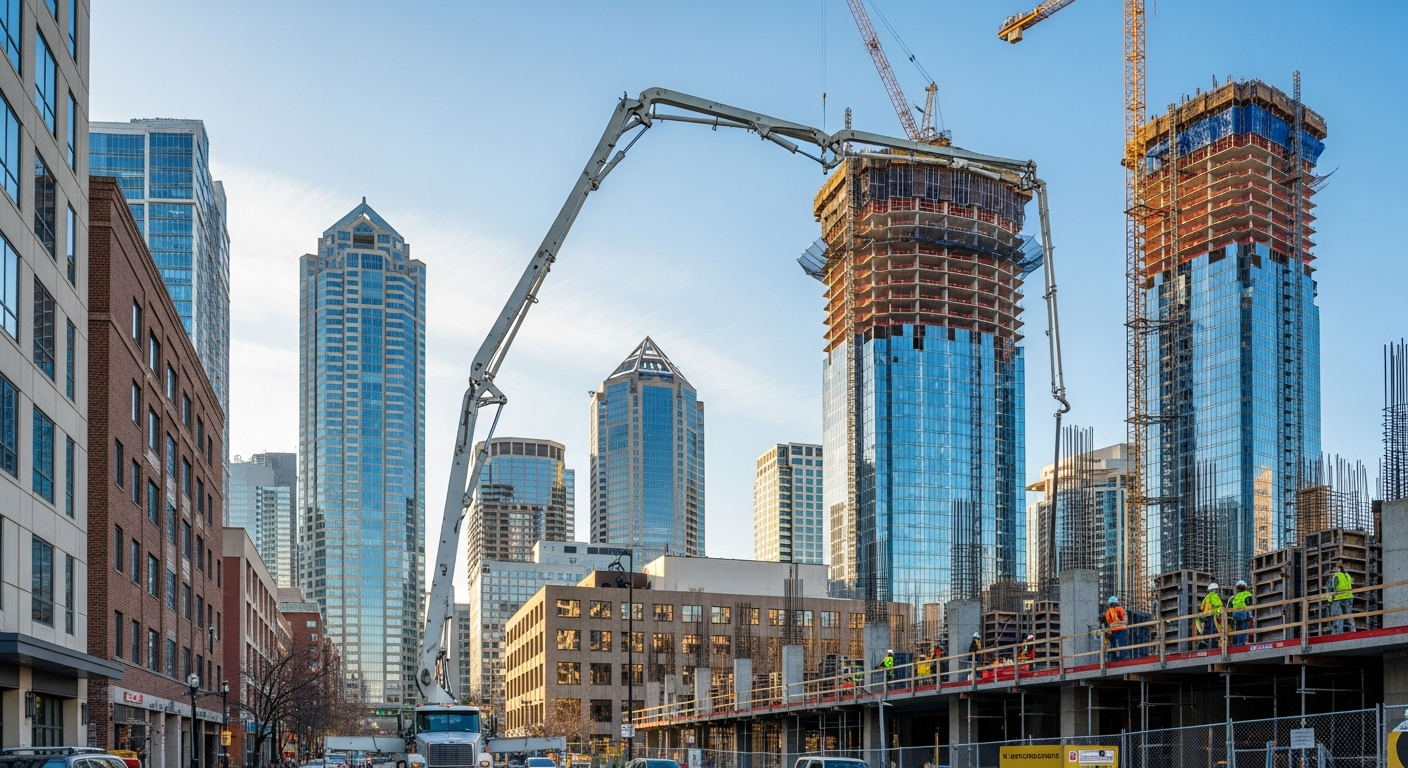

The 50-meter boom pump offers 164 feet of vertical reach and 149 feet of horizontal reach. High-rise construction, large-footprint commercial projects, and any job where maximum reach eliminates hose runs entirely are its territory. Set it once, cover a massive pour area without repositioning.
That range puts the right truck on each job instead of oversizing the equipment for every pour. From tight residential driveways to high-rise commercial pours — Hat City has the reach.
What Projects Need
a Boom Pump?

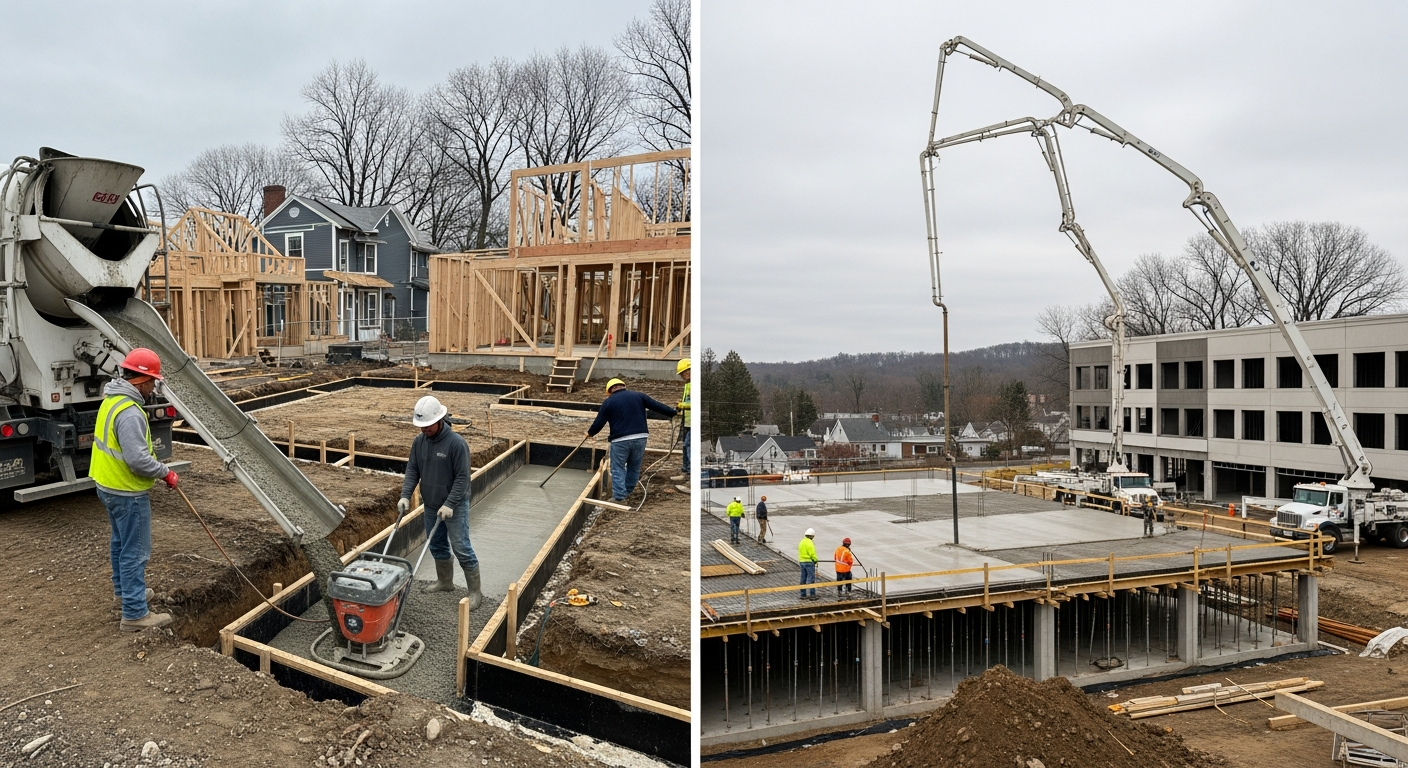

A boom pump is the right choice whenever concrete needs to move quickly, reach over obstacles, or be placed at height. The articulating boom removes the access problem — the truck parks at the site edge while the boom reaches wherever the pour needs to go.

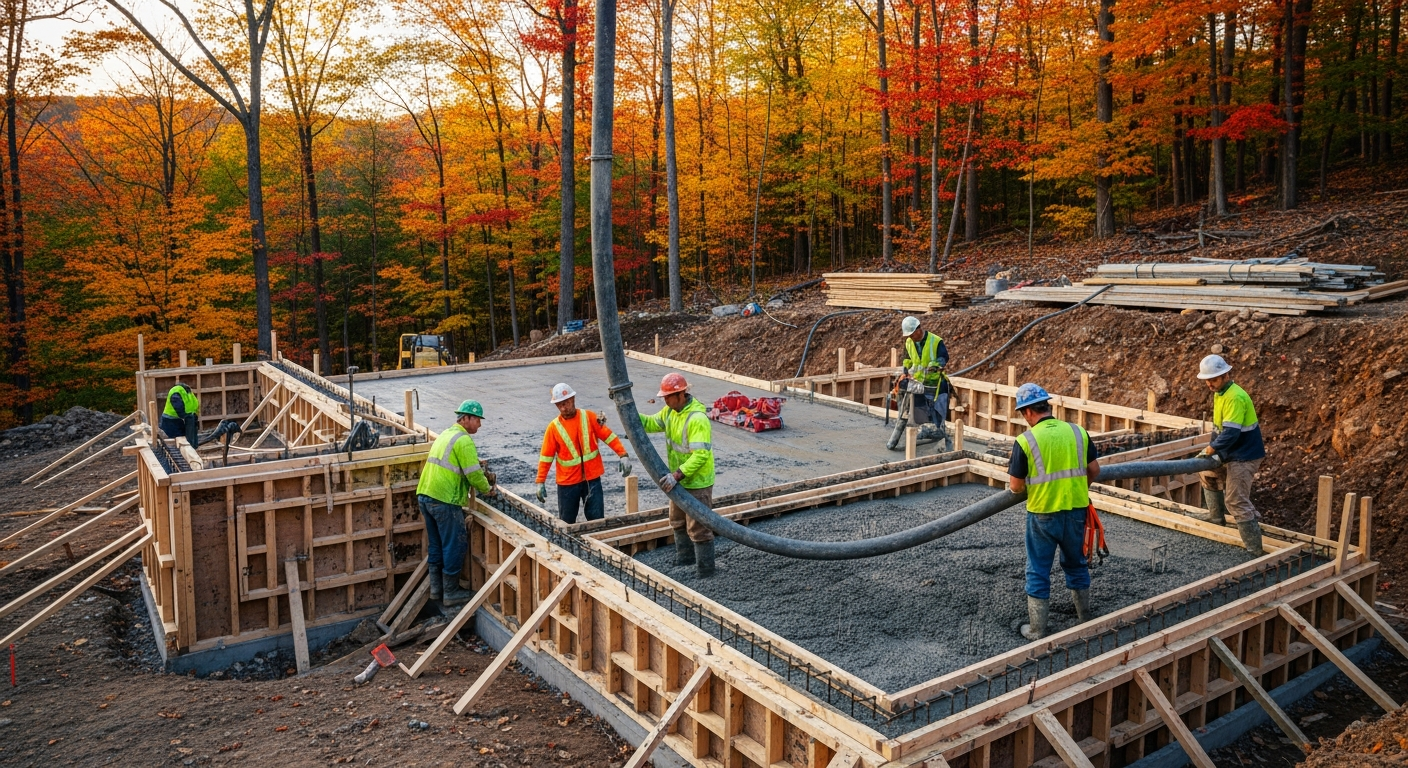

Basement and foundation pours, full-depth slabs, pool shells, and backyard jobs where the mixer cannot reach. Narrow driveway, small gate, or steep terrain — the boom gets over it. Our residential concrete pumping page covers this work in full.

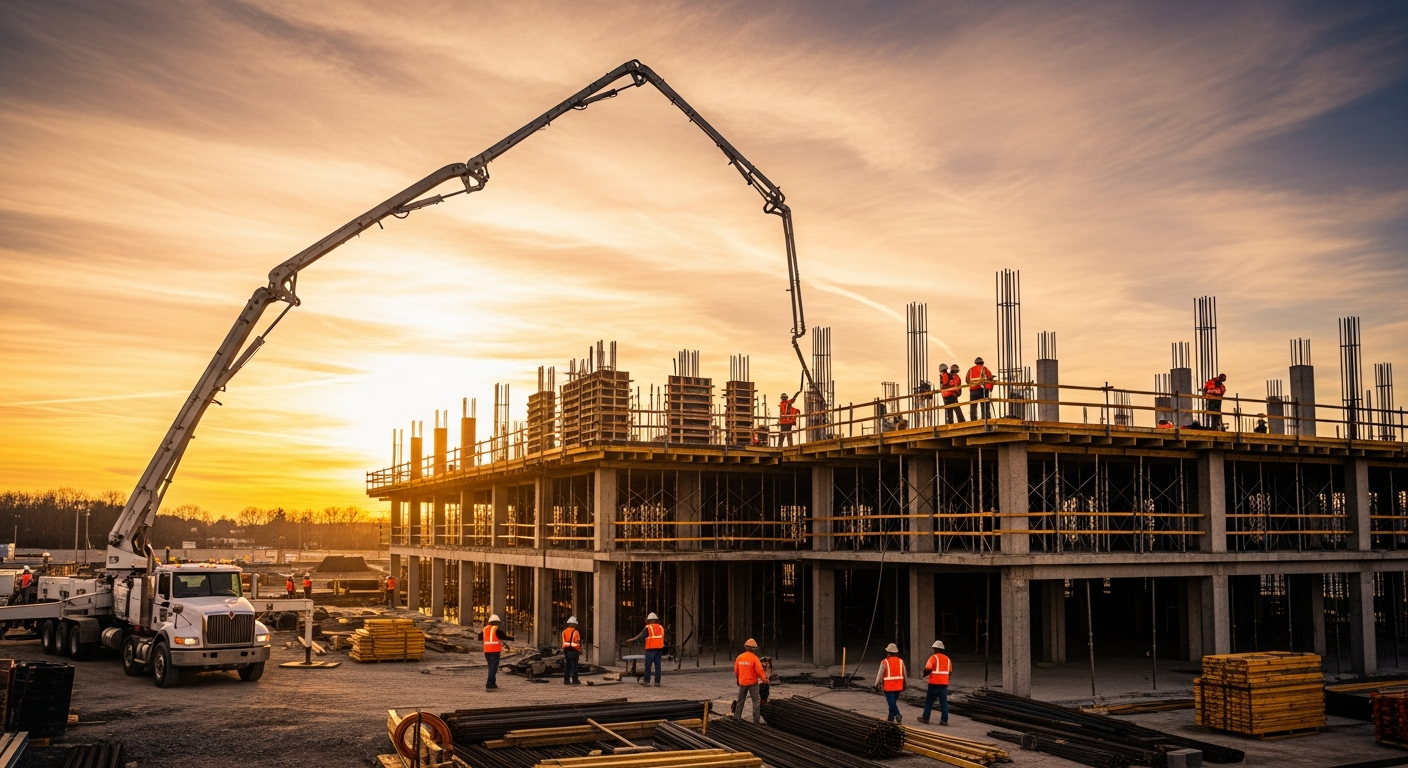

Elevated slabs, tilt-up panels, grade beams, and multi-story structural pours. When a cold joint in a structural element can mean a failed inspection, keeping concrete moving without interruption is not optional. Our commercial concrete pumping work spans Fairfield County, Westchester County, and beyond.
For industrial projects — treatment facilities, large foundation mats, infrastructure pours — the 50-meter handles maximum reach with continuous pour volume. See the project gallery for examples of the work we handle.
How Does a Boom Pump Compare
to Line Pumping?
A boom pump excels for vertical reach, concrete placement over obstacles, multi-story structures, and jobs where pour volume and speed are the primary concerns. The articulating boom arm puts concrete exactly where it needs to go without hose runs across the site.
- Vertical reach & multi-story structures
- Placement over obstacles & barriers
- High-volume pours where speed matters
- No hose runs required across the jobsite
Line pumping is the better fit for grade-level flatwork, confined spaces, and sites where overhead obstructions prevent boom operation. It delivers at ground level via a pump hose run from the truck. Simpler setup on certain projects, practical when boom reach is not needed.
- Grade-level flatwork & slabs
- Confined spaces & tight access sites
- Sites with overhead obstructions
- When boom reach is simply not required
Boom pump service and line pumping each have a place, and Hat City Concrete Pumping provides both.
Not sure which fits your project? Our line pump service page explains when line pumping makes the most sense, and the boom pump vs line pump comparison walks through the decision in detail.
How Is a Boom Pump Set Up on a Job Site?
Setting up a boom pump correctly is what makes the rest of the pour run smoothly. Our ACPA certified operators manage every step - but knowing what to expect helps you have the site ready when we arrive.

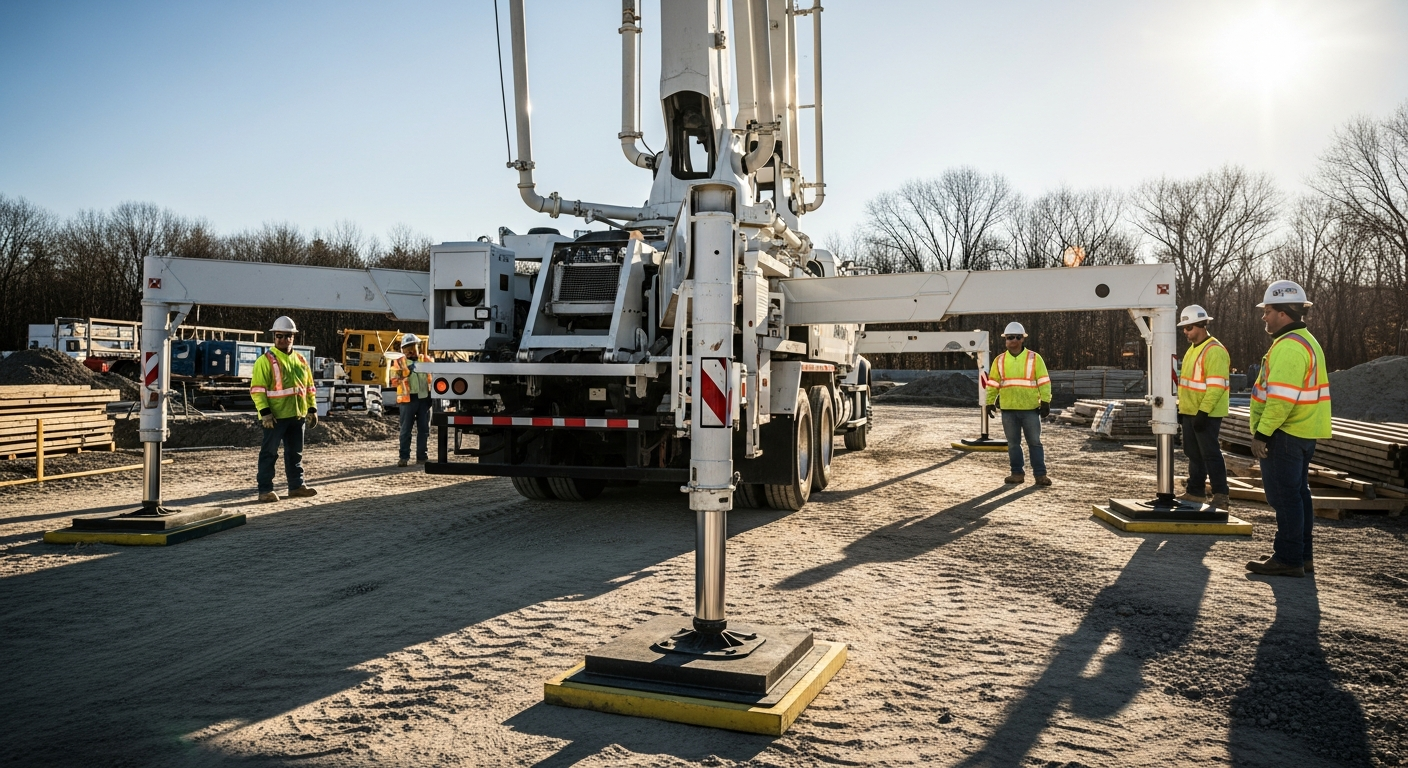

When the truck arrives, the operator selects the best position based on pour location, overhead conditions, and available ground. Four outrigger legs deploy to create a stable platform before the boom raises. The outrigger footprint runs approximately 25 to 30 feet in each direction - you need clear, level ground in that zone, not just a clear lane for the truck.
Overhead power line clearance is evaluated on every setup. OSHA standards require maintaining safe clearance from energized lines, and operators assess this before raising the boom. If lines fall within the work zone, the utility company must de-energize or install insulated covers before the pour proceeds. We flag this during the estimate phase whenever it is apparent from the job details.
Once outriggers are down and the area is cleared, the boom unfolds and the operator positions the tip hose over the pour area via remote control. The ready mix truck backs to the hopper, discharge begins, and the operator adjusts position throughout the pour. For large commercial pours, outrigger setup and pad placement are reviewed with the site superintendent during the pre-pour walkthrough - eliminating surprises on pour day.
25–30 ft clearance needed in every direction — level, unobstructed ground required.
OSHA clearance assessed before every boom raise — flagged at estimate phase when visible.
Outrigger pads and setup reviewed with site super before commercial pours begin.
Four legs stabilize the truck before the boom raises — ground clearance is critical.
What Should You Know About
Boom Pump Reach?
Boom pump reach has two components — vertical and horizontal — and understanding both helps you pick the right truck. Vertical reach is the maximum height the tip hose can achieve with the boom extended straight up. Horizontal reach is the maximum distance from the truck center when the boom extends outward.
In practice, most pours use a combination of both. The boom articulates through multiple sections, folding over obstacles and placing concrete at angles a single-section arm could not manage. The tip hose adds a few feet of effective reach and gives the pour crew direct control over final concrete placement.
Unusual reach requirements? Call and we will tell you which truck fits. Our service area page shows all counties and towns we cover across Connecticut and New York.
Ideal for residential slabs, walkout basements, and tight residential lots.
Mid-rise construction, multi-story commercial pours, and complex site layouts.
High-rise and large-footprint industrial pours requiring maximum boom extension.
Not Sure Which Truck You Need?
Call us and we will tell you exactly which boom fits your pour. Our service area page shows all counties and towns we cover across Connecticut and New York.
How Much Does Boom Pump Service Cost?
Boom pump service pricing depends on pump size, pour duration, and distance from our Danbury CT or Brewster NY dispatch locations. Larger trucks with longer booms carry higher mobilization and hourly rates. A half-day residential pour with the 20-meter is priced very differently from a full-day commercial pour with the 50-meter. Mobilization fees, minimum pour times, and fuel surcharges all factor into the final quote.
For detailed pricing context, see our guide on how much concrete pumping costs. Every job gets a free estimate based on actual scope and site conditions. Call (203) 790-7300 (CT) or (860) 467-1208 (NY) to get a number that reflects your specific project.
- Pump size & boom length
- Pour duration (half-day vs. full-day)
- Distance from Danbury CT or Brewster NY
- Mobilization & minimum pour times
- Fuel surcharges & site conditions
Frequently Asked Questions
About Boom Pump Service
What is boom pump rental and does Hat City offer it?
Boom pump rental means hiring a pump truck and a certified operator for concrete placement on your site. Hat City Concrete Pumping provides boom pump service with ACPA certified operators included - we do not rent bare equipment without an operator. Every service call includes setup, pour management, and full operation of the truck.
How far in advance do I need to book boom pump service?
Residential projects typically need one to two weeks of lead time. Commercial projects with tight schedules benefit from two to four weeks. Summer months fill quickly, so earlier is better. Call (203) 790-7300 or (860) 467-1208 to check availability.
What do I need to have ready on site before the boom pump arrives?
Clear, level access for the truck and a stable outrigger area with adequate ground bearing capacity are the key requirements. The outrigger footprint is approximately 25 to 30 feet wide - clear that zone before we arrive. Overhead power lines near the pour should be addressed in advance with your utility company.
Does Hat City serve all of Connecticut and New York?
We serve Fairfield County, Litchfield County, New Haven County, and Hartford County in Connecticut, and Putnam County, Westchester County, Dutchess County, Orange County, and Rockland County in New York. Operating from Danbury CT and Brewster NY keeps drive times short for most job sites. Not sure we cover your location? Use our contact page and we will confirm.
What mix designs can a boom pump handle?
Most standard ready mix designs pump without modification. Very low slump mixes or coarse aggregate beyond pipeline diameter limits can create issues. Our operators flag any mix design concerns before pour day - it is far easier to adjust before the truck rolls than on the morning of the pour.
Still have questions? Our team is ready to talk through your project.
Get a Free Estimate for Boom Pump Service in CT and NY
Hat City Concrete Pumping has been providing boom pump concrete pumping across Connecticut and New York since 2014. Our operators know the region's job sites and bring that experience to every pour. Licensed and insured in both states, with ACPA certified crews on every job. Learn more about Hat City or call to discuss your project.
We serve contractors, homebuilders, and concrete subs throughout the region. Two locations — Danbury CT at 12 Dixon Road and Brewster NY at 20 Brush Hollow Road — keep us close to the work. For residential projects, see our residential concrete pumping services. For commercial work, see our commercial concrete pumping services.
Call (203) 790-7300 (CT) or (860) 467-1208 (NY) for a free estimate. Available Monday through Saturday, 6:00 AM to 8:00 PM. You can also reach us through our contact page.
